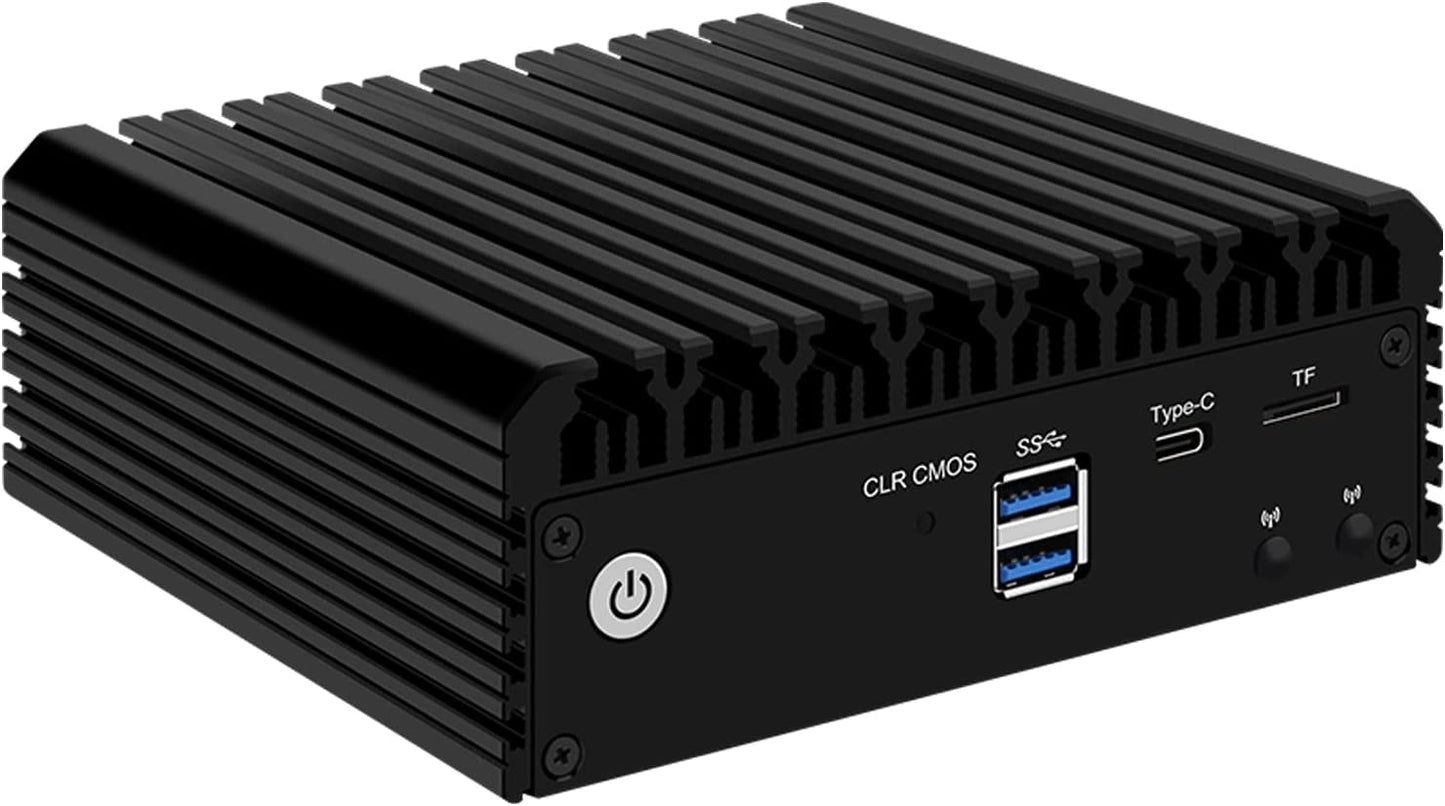

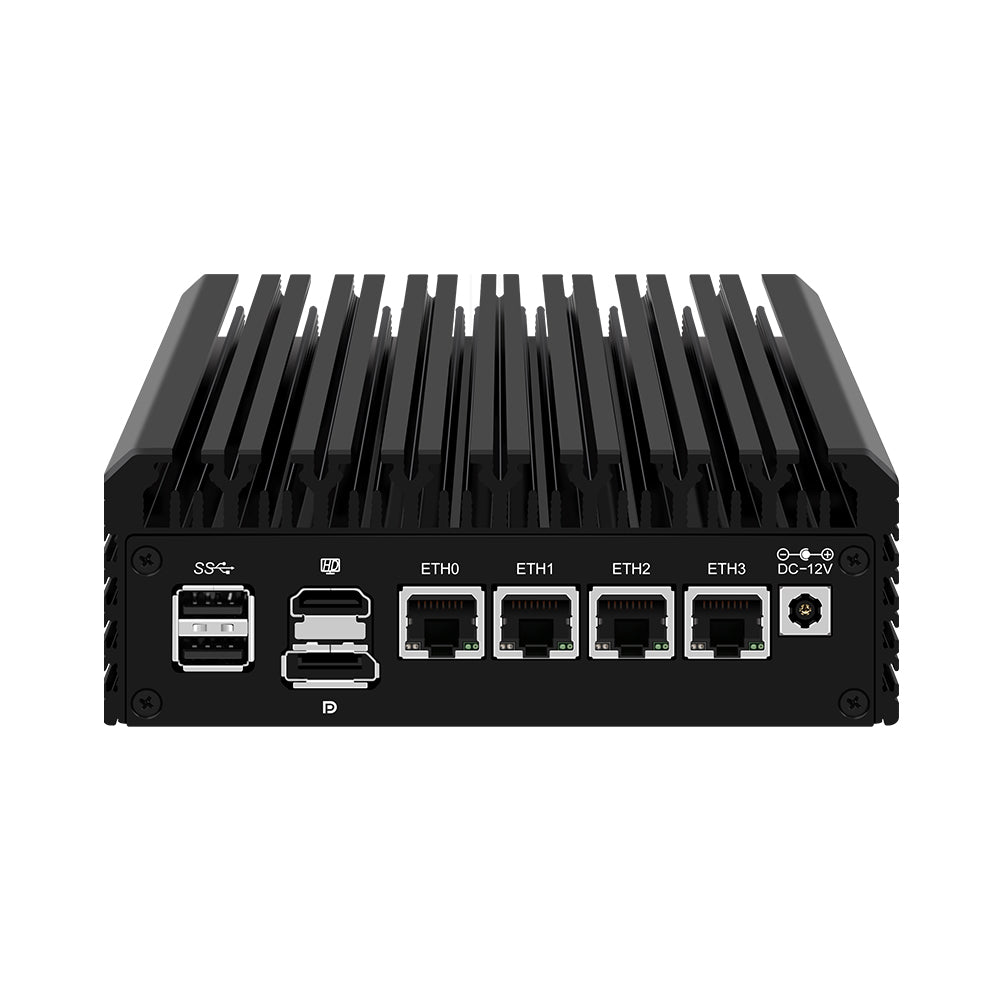

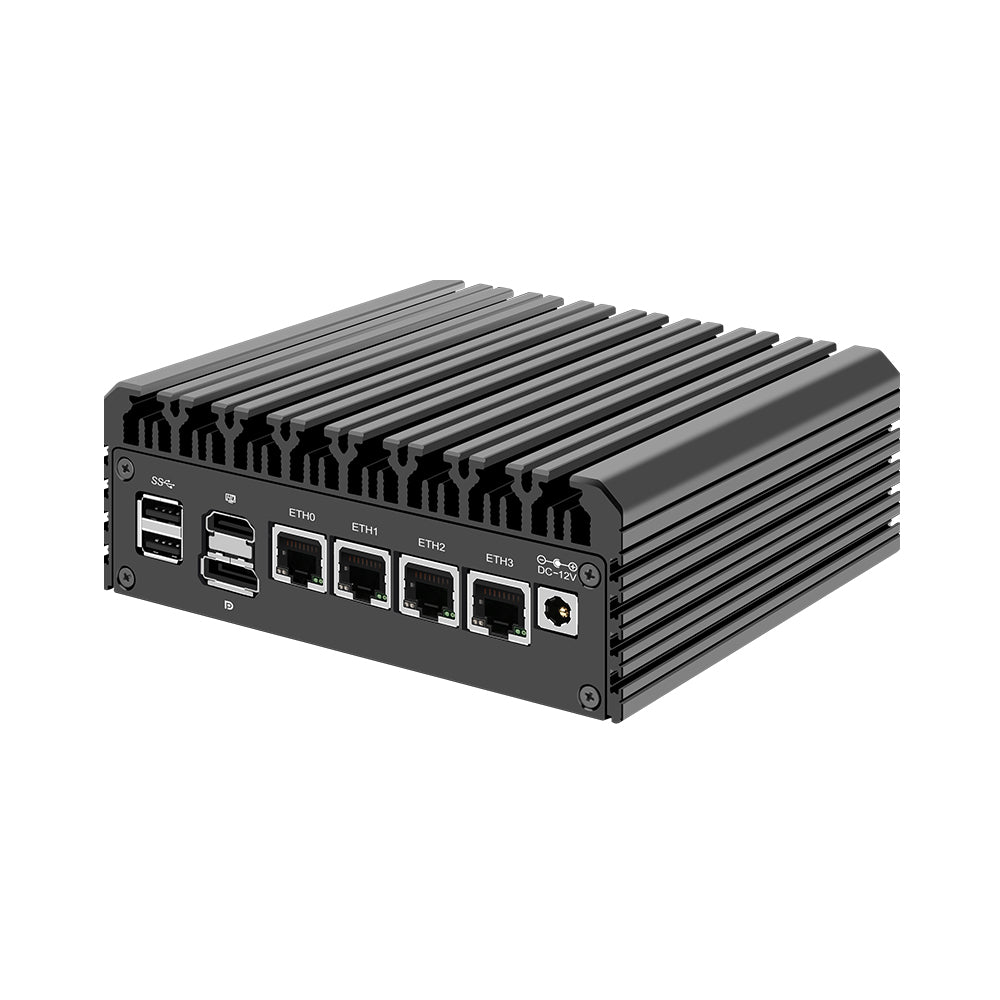

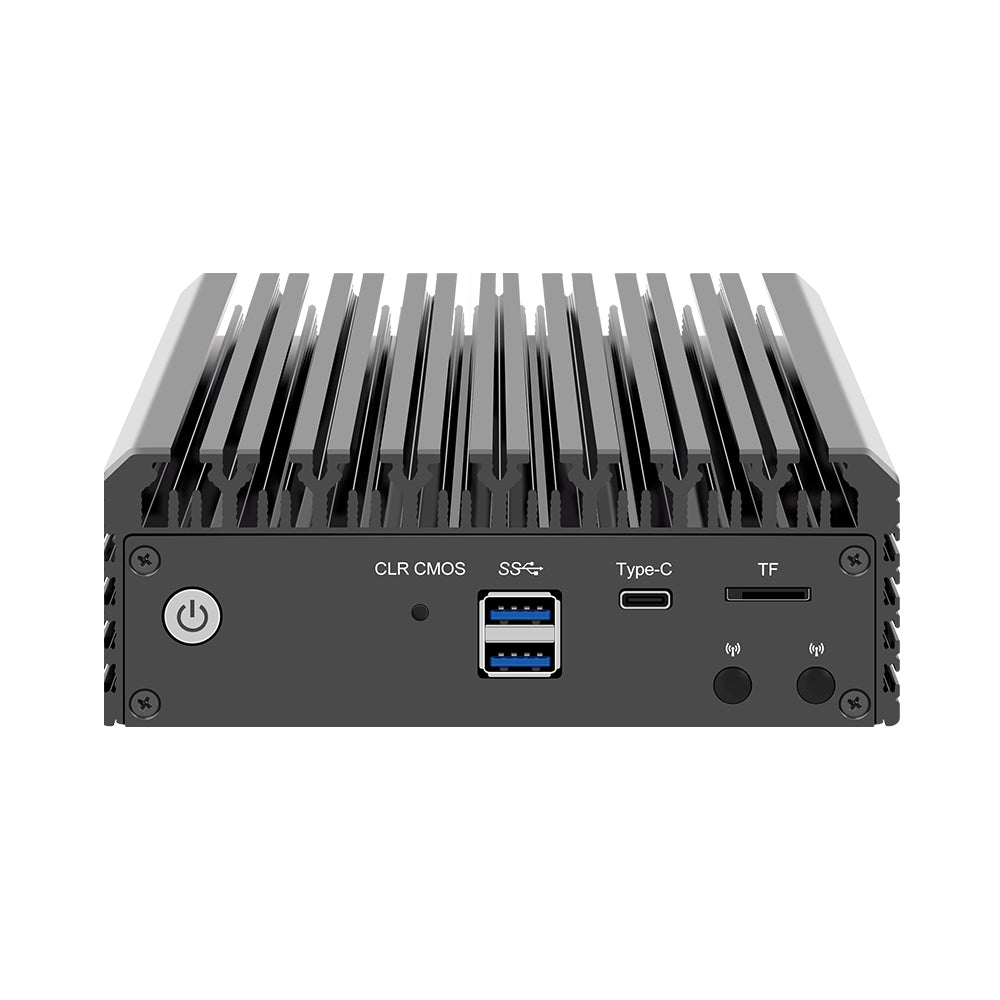

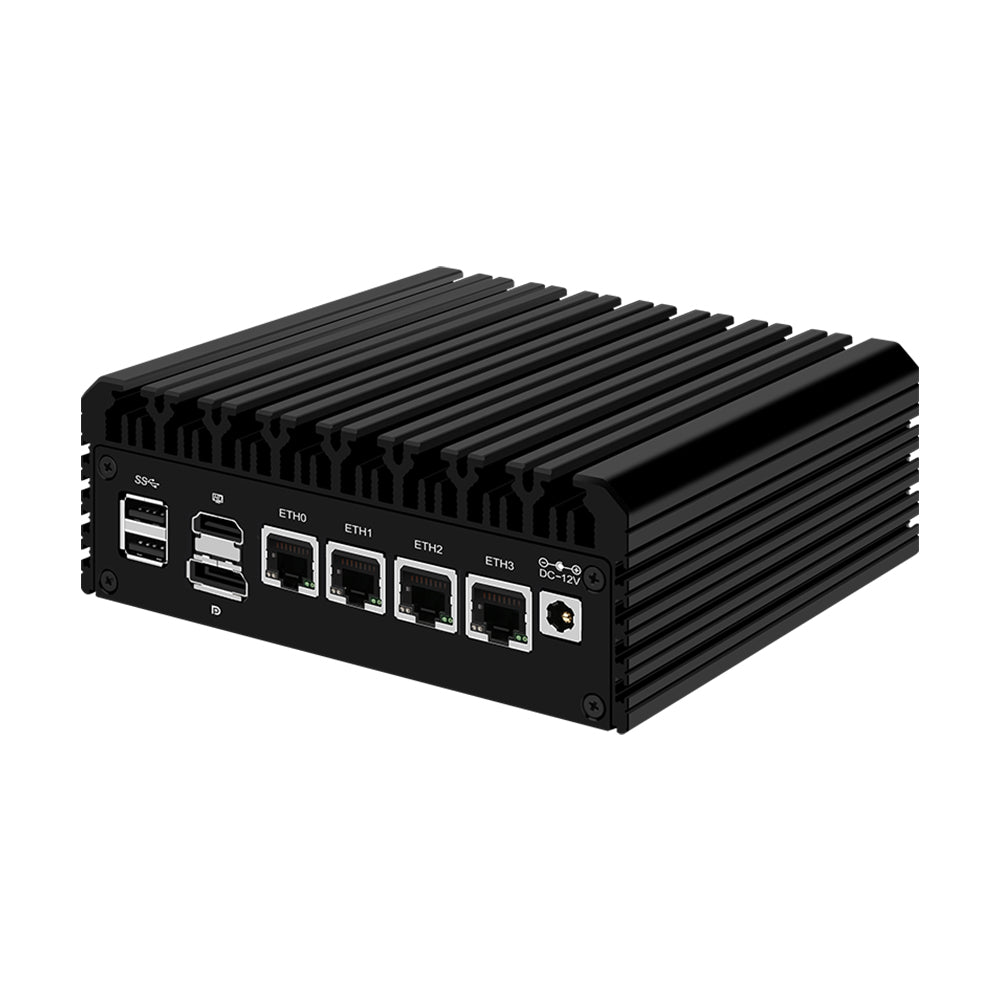

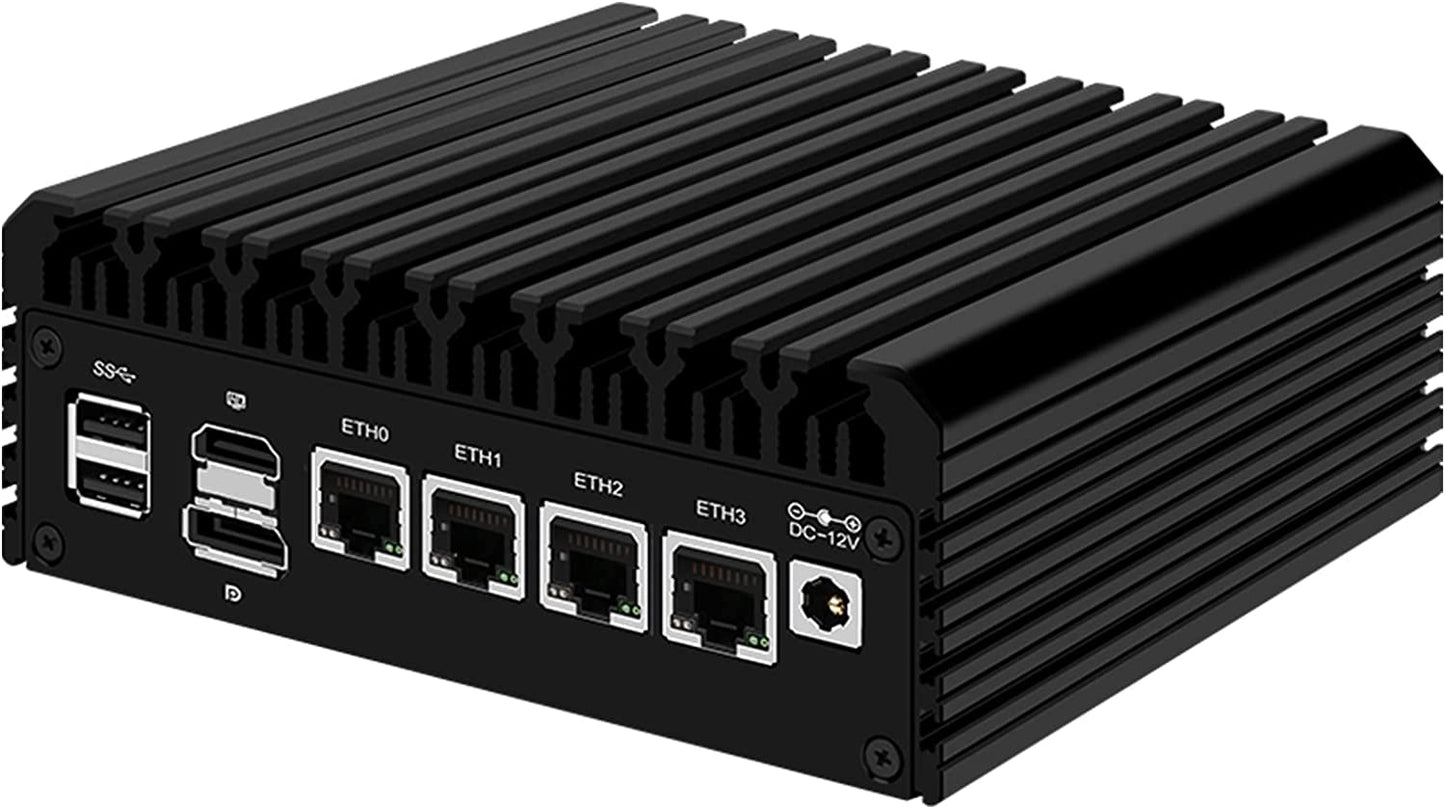

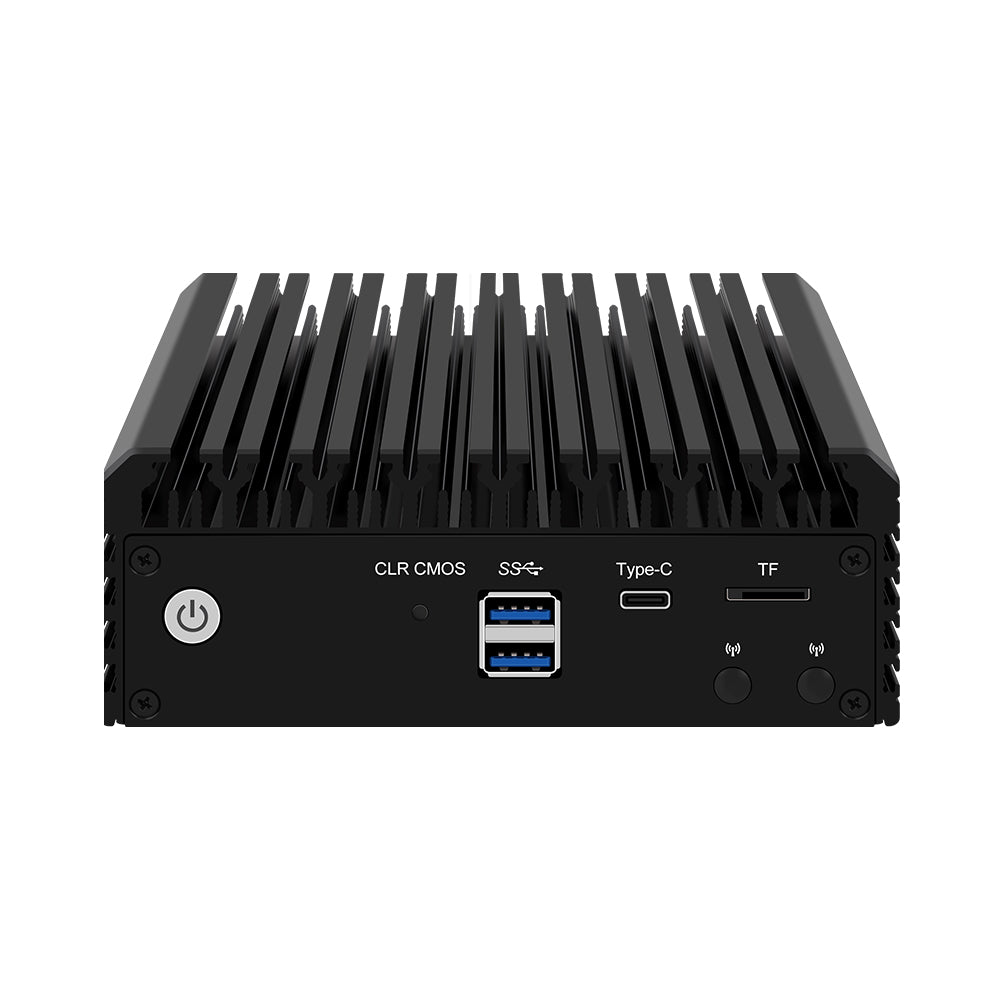

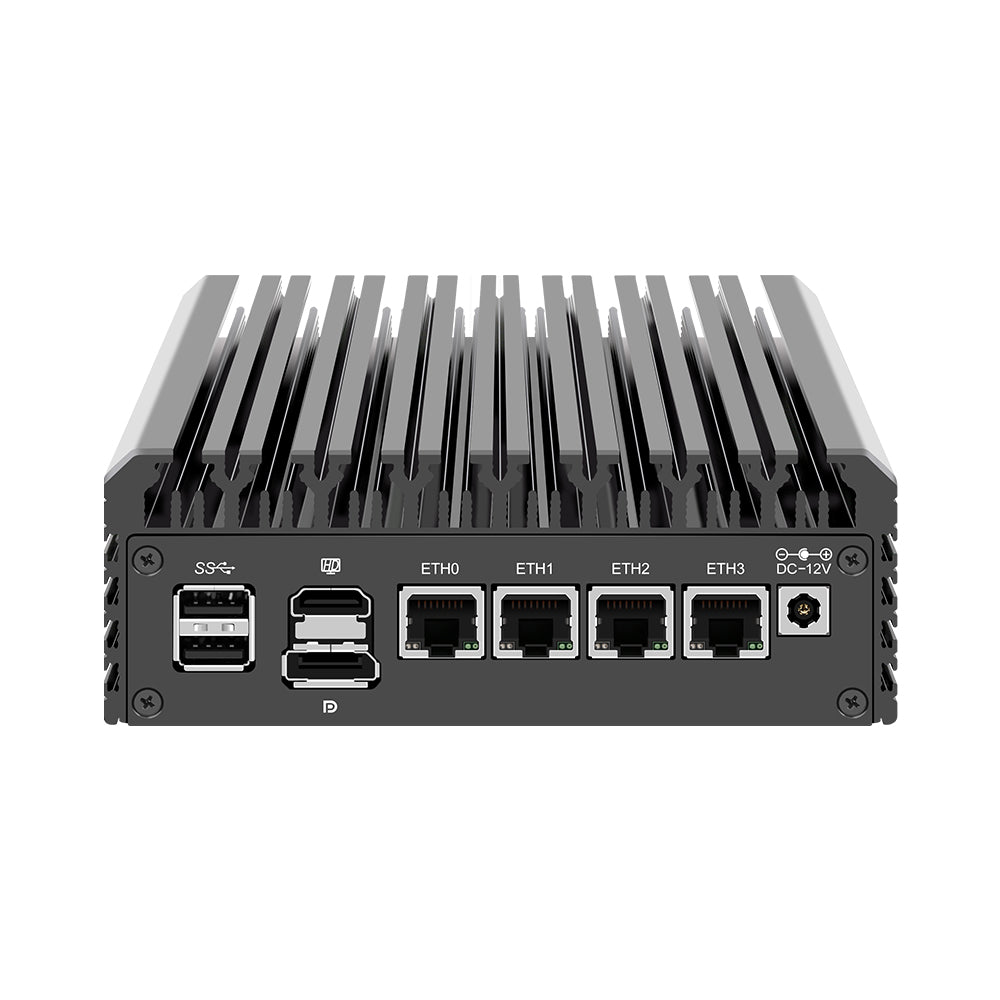

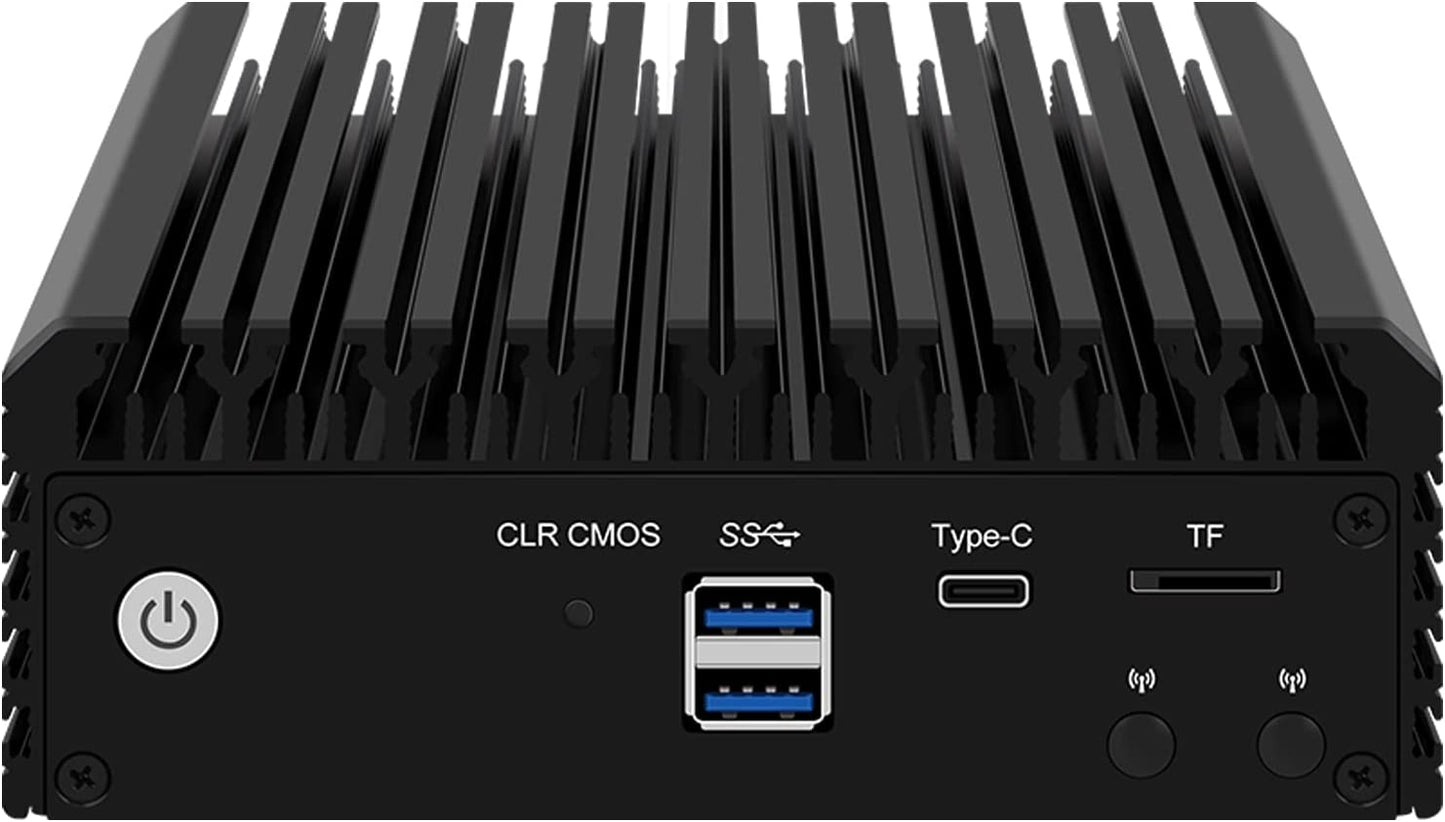

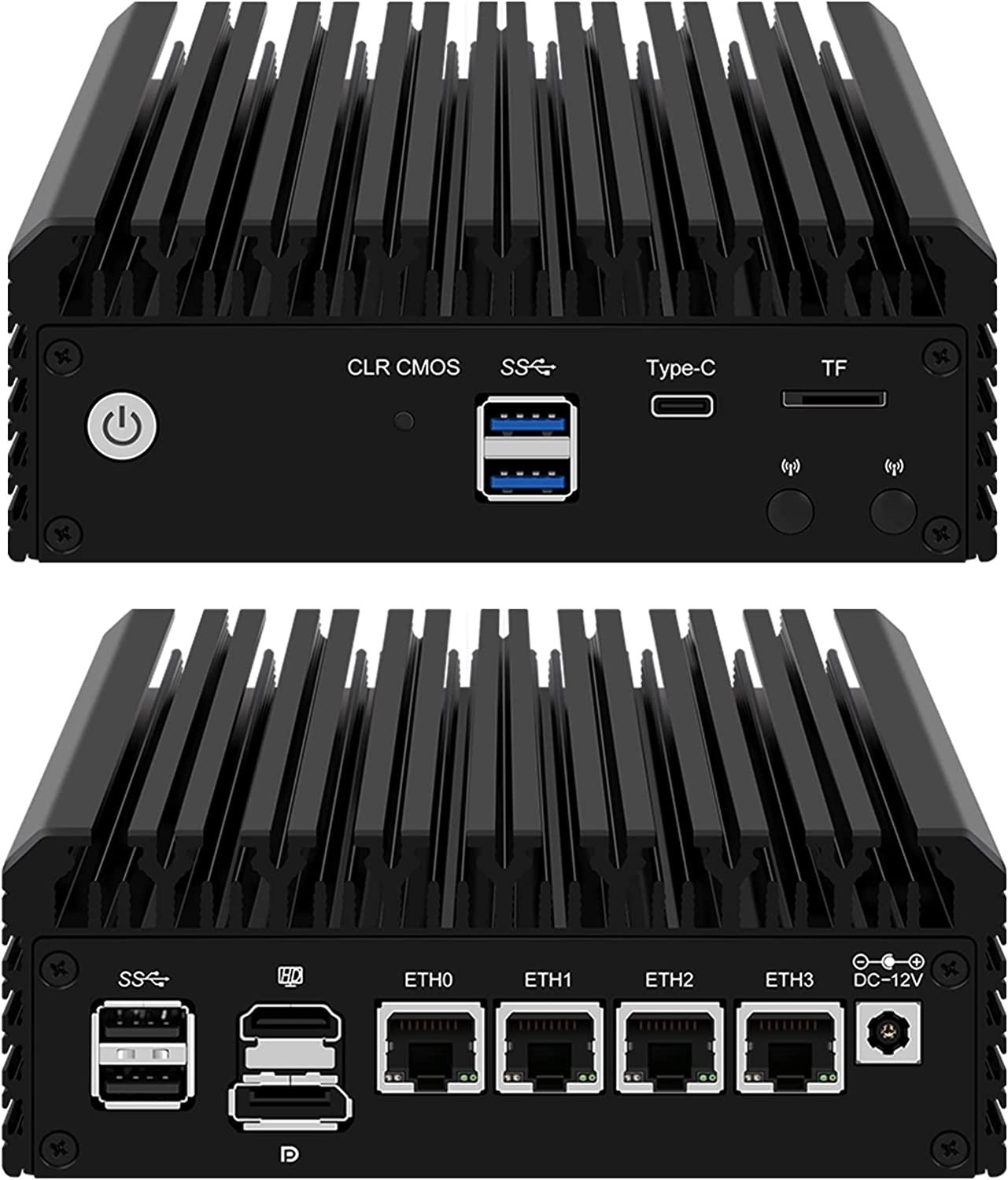

MOGINSOK 2.5GbE Linux Firewall Micro Appliance Celeron N5105 4xIntel I226 Nic Firewall Router PC 8GB DDR4 128GB M.2 NVMe SSD AES-NI
MOGINSOK 2.5GbE Linux Firewall Micro Appliance Celeron N5105 4xIntel I226 Nic Firewall Router PC 8GB DDR4 128GB M.2 NVMe SSD AES-NI
Product Highlight
-onboard with Jasper Lake 11th Gen Intel Celeron 5105 Quad cores Four threads 2.0GHz up to 2.9GHz 4MB cache with Intel UHD Graphics
-2xDDR4 SODIMM Ram slot, support 2400/2666/2933MHz.
-Support triple storage: 2xM.2 NVMe/PCIe3.0x1 2280 SSD+1x2.5''SATA SSD/HDD.
-1xM.2 2232 slot, support WiFi connection, also support transfer to 1xM.2 NVMe/PCIe3.0x1 2280 SSD with PCB adapter board.

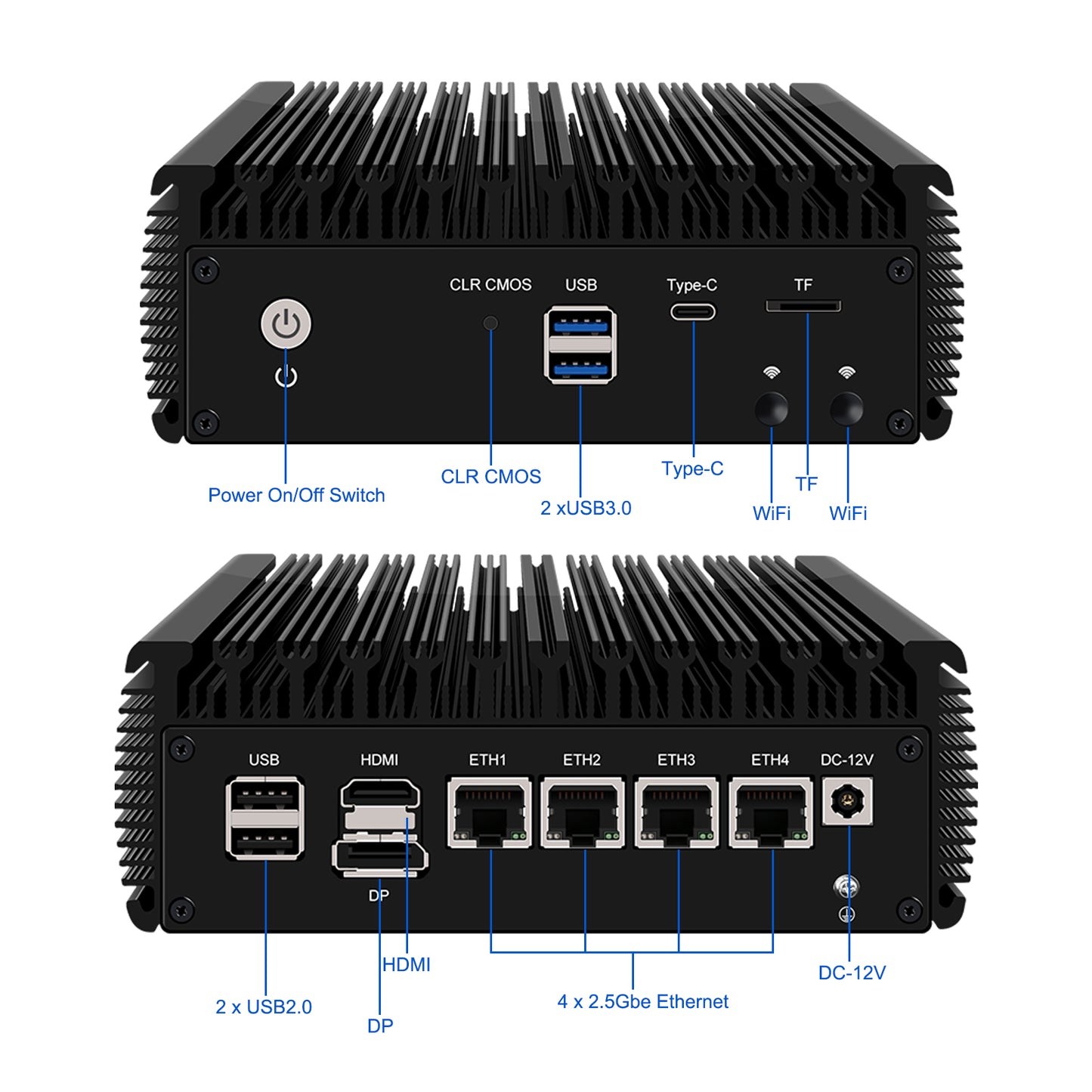

-Support three display: 1xHDMI2.0, 1xDP1.4, 1xType-C, 3x4K@60Hz UHD video display.
-Support wide voltage 12-19V input.
-Support TPM2.0, AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Full Aluminum Alloy high quality solid-built shell with three-sided Y-section ice thorns, excellent cooling performance, Exquisite production craft on outside design.
-Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7x24 hours.
-Low consumption TDP only 10W and can be mounted back of monitor by VESA bracket(optional).
Package List
1xMini PC
1xPower Adapter
1xPower Cord
1xM.2 2232 to 2280 PCB adapter board
1xSATA Cable
1xScrews Bag
Notice that we'll preinstall Pfsense 23.01 for bundled configurations(except barebone no ram no ssd).
