MOGINSOK 10Gbe Pfsense Router Micro Firewall Appliance, 10GbE Mini PC with SFP+ Intel Alder Lake N100/N200/N305 4xIntel I226-V 2.5GbE 2*Intel 82599ES 10GbE Firewall LTE Router Support AES-NI DDR5 RAM NVMe SSD

MOGINSOK 10Gbe Pfsense Router Micro Firewall Appliance, 10GbE Mini PC with SFP+ Intel Alder Lake N100/N200/N305 4xIntel I226-V 2.5GbE 2*Intel 82599ES 10GbE Firewall LTE Router Support AES-NI DDR5 RAM NVMe SSD

$449.00 USD
$449.00 USD
Promoção Esgotado
Frete calculado no checkout.
Color
CPU
Bundle RAM&SSD
CPU:

Processor

Core

Cache

Frequency  Turbo

TDP

Graphics

Intel N100

4 core, 4 Threads

6M

3.40 GHz

6W

Graphics Intel UHD 750MHz 24EUS

Intel N200

4 core, 4 Threads

6M

3.70 GHz

6W

Grafica Intel UHD 750MHz 32EUS

Intel Core i3-N305

8 core, 8 Threads

6M

3.80 GHz

9-15W

Grafica Intel UHD 1250MHz 32EUS
  • 【Professional Firewall & NAS SERVER】MOGINSOK 10gbe Firewall Appliance Mini PC-MGNASN, a powerful professional firewall router pc equipped with a 12th/13th Gen Alder Lake N100/N200/N305 TDP only 6-15W with Intel UHD Graphics which maximizes the performance of the 2.5GbE port & SFP+ port, bring you a smooth secured and encrypted network environment.

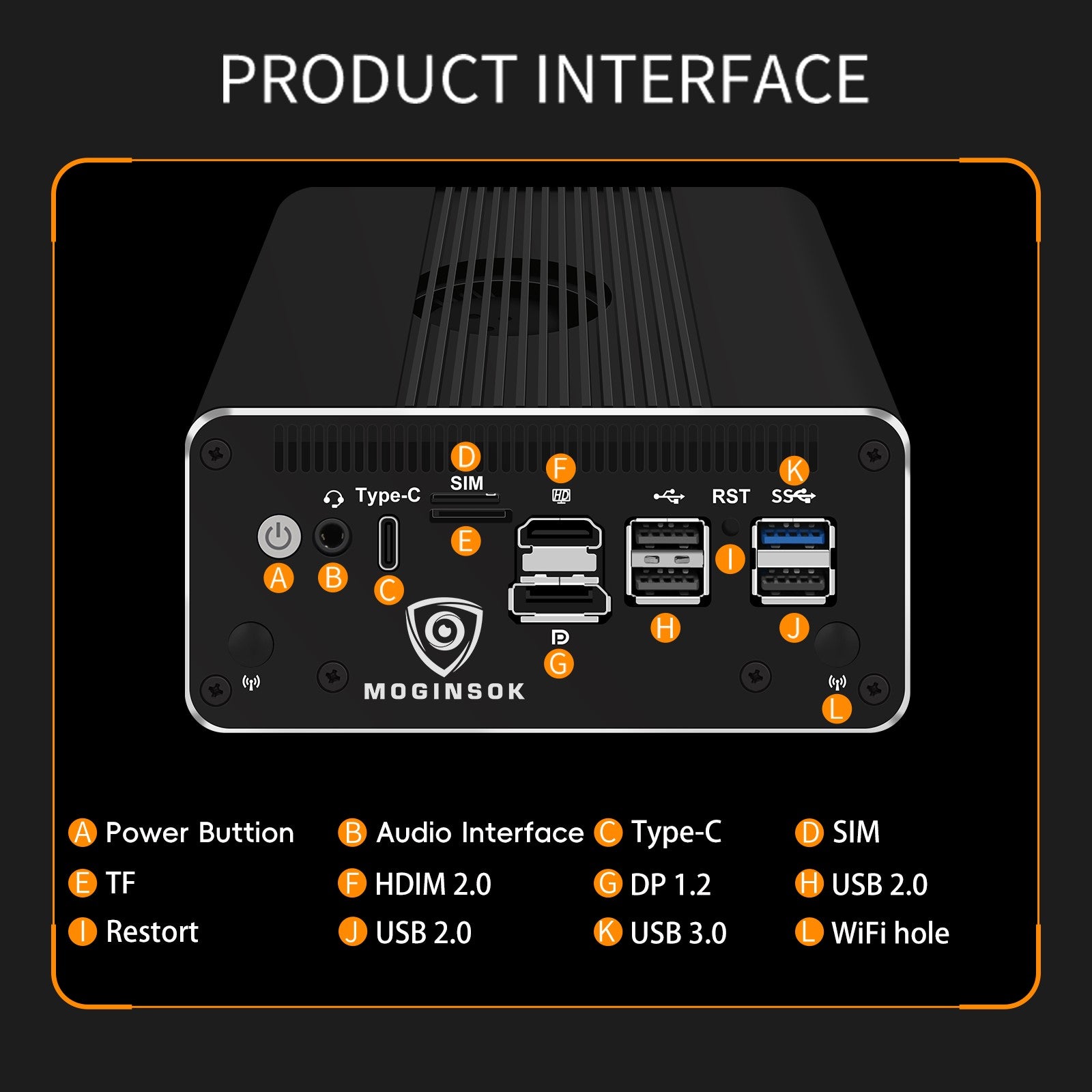

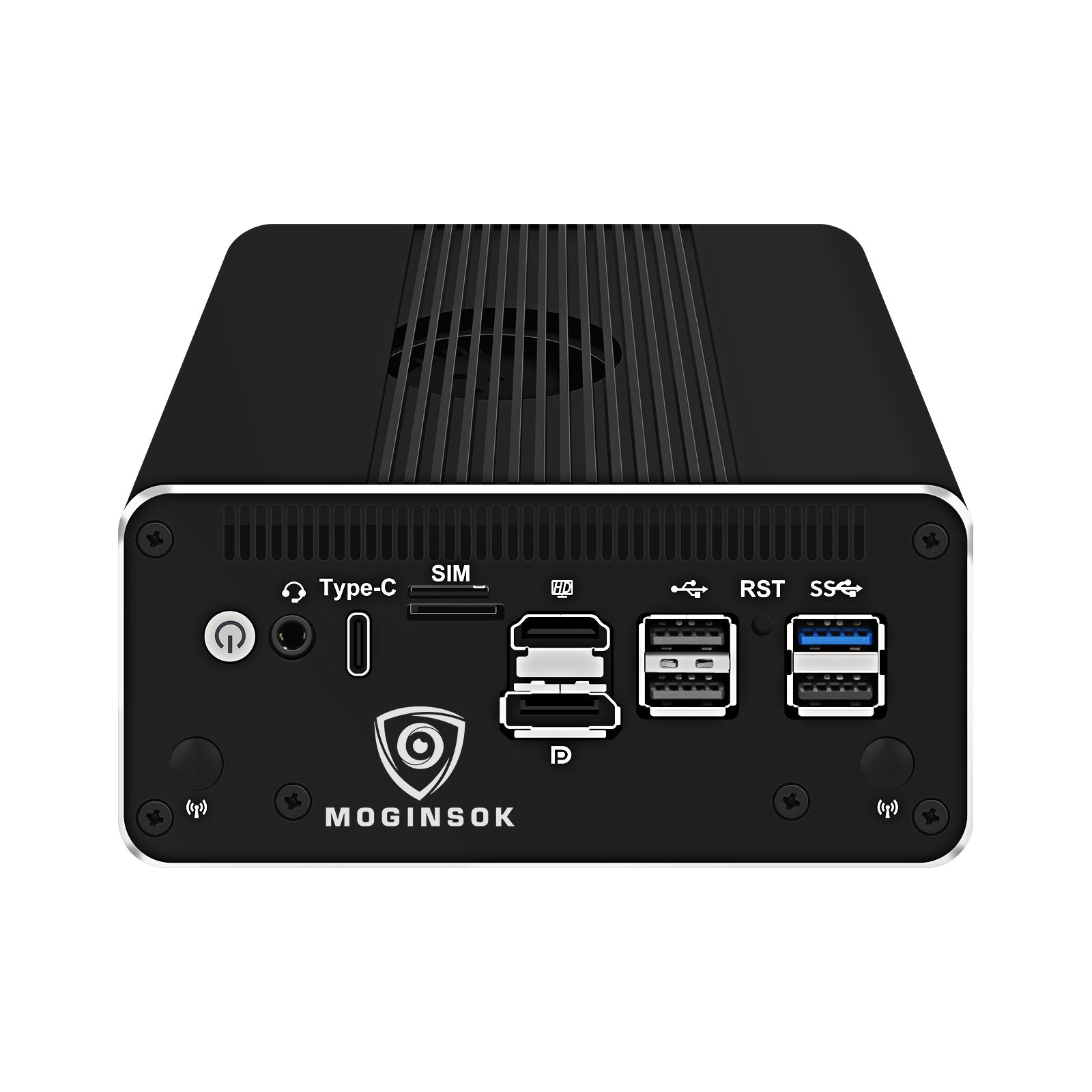

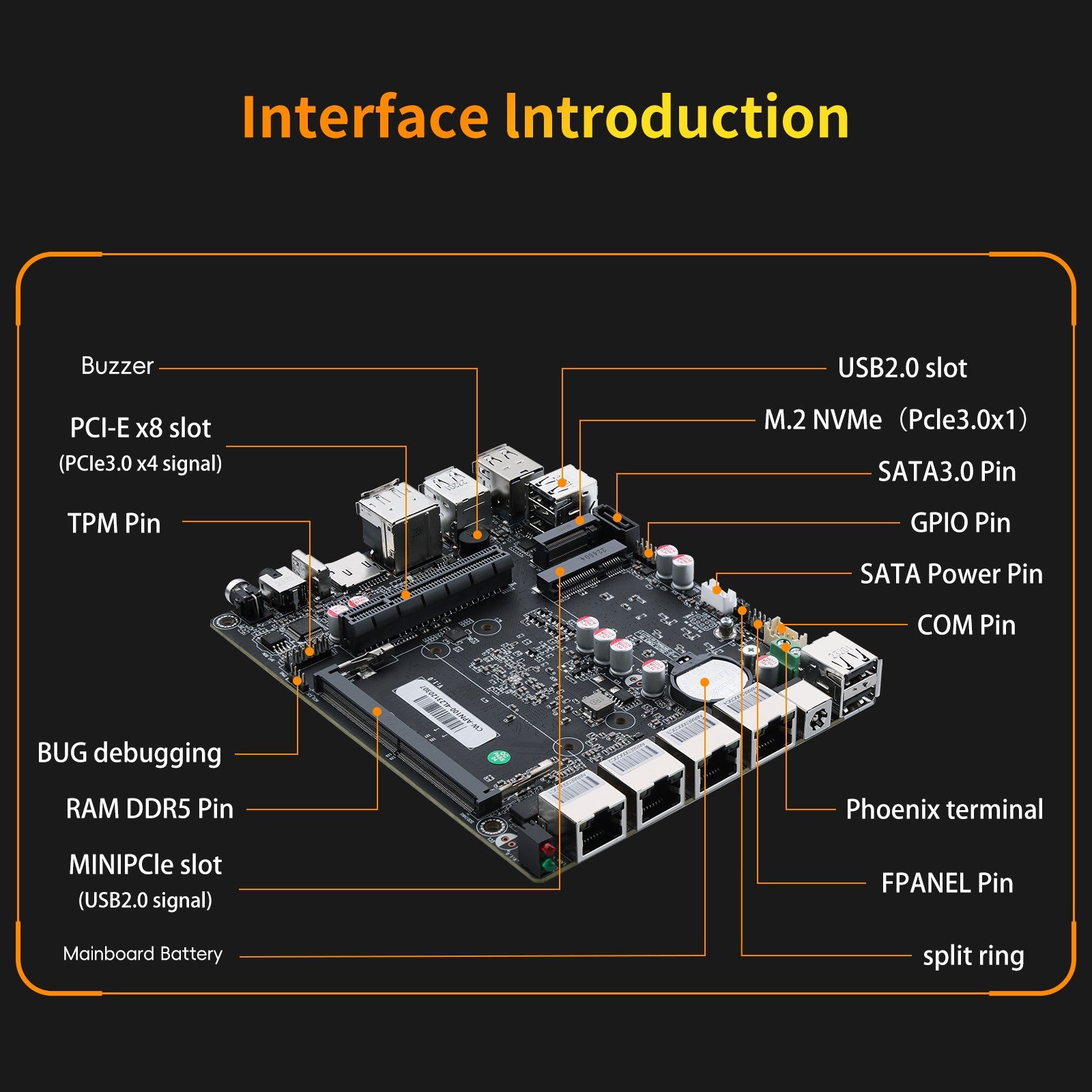

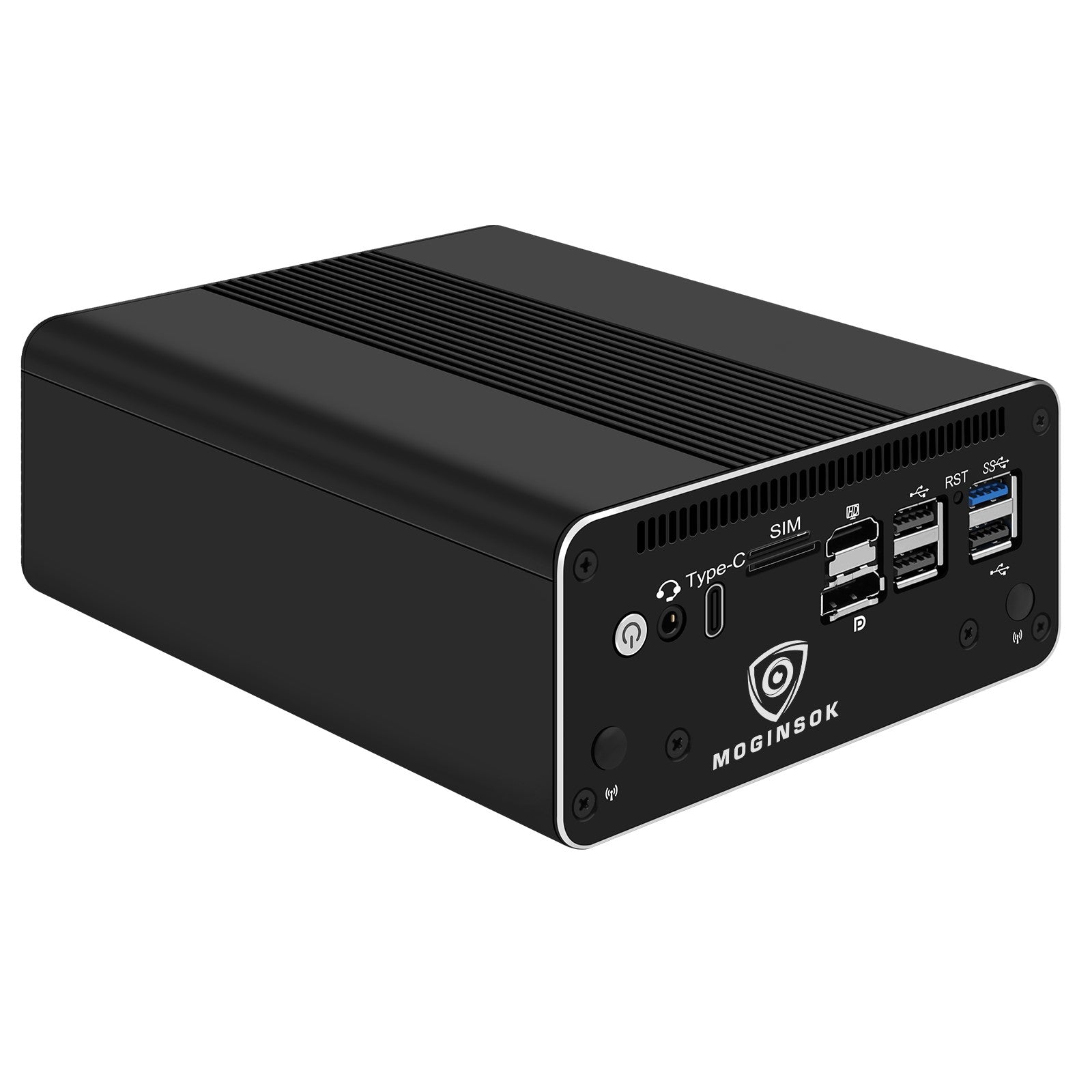

  • 【Rich I/O to meet your needs】Firewall Appliance MGNASN With HDMI 2.0+DP 1.4+TYPE-C(dp 1.2) Support for 3x4K@60Hz together, Dual DDR4 RAM slot support for up to 1x32GB SO-Dimm laptop DDR5 Ram Maximum 5600Mhz and 1xM.2 NVMe/PCIe 3.0x1 2280 SSD slot +1*SATA 3.0 SSD/HDD slots (install externally), also it support boot from TF card slot and it also support PXE/AWOL/Watchdog/GPIO etc. which is perfect for your firewall appliance、VM、Router、home Server needs.

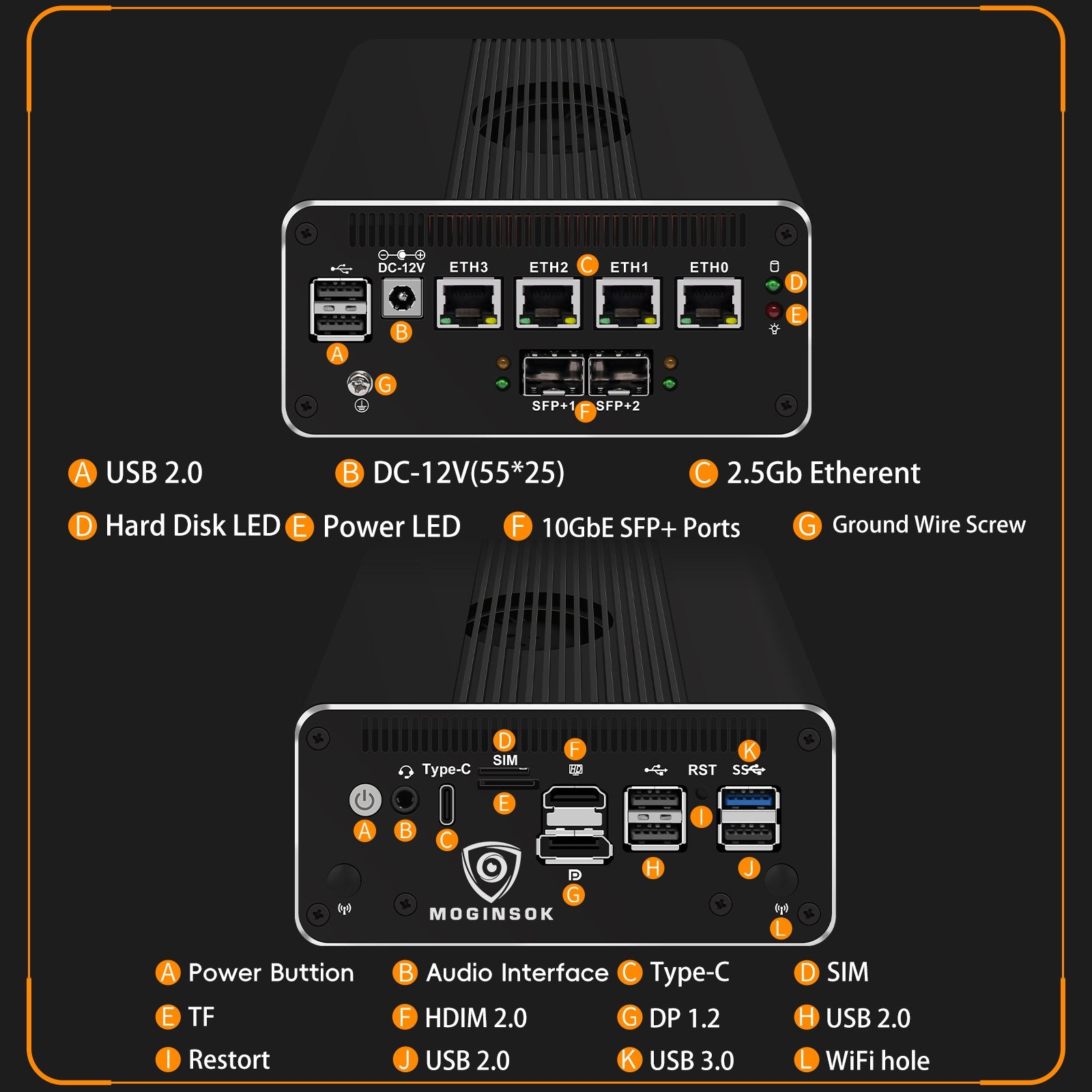

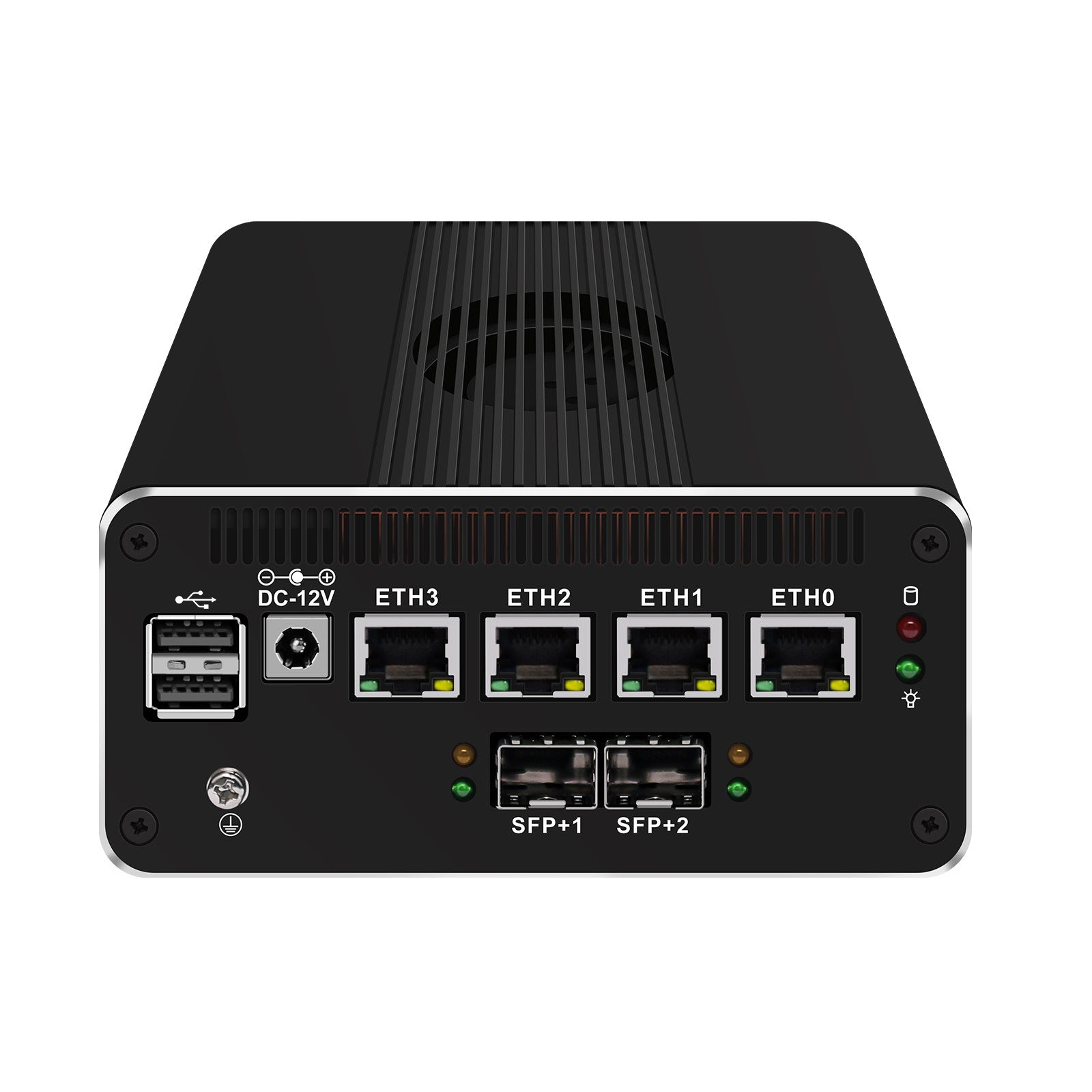

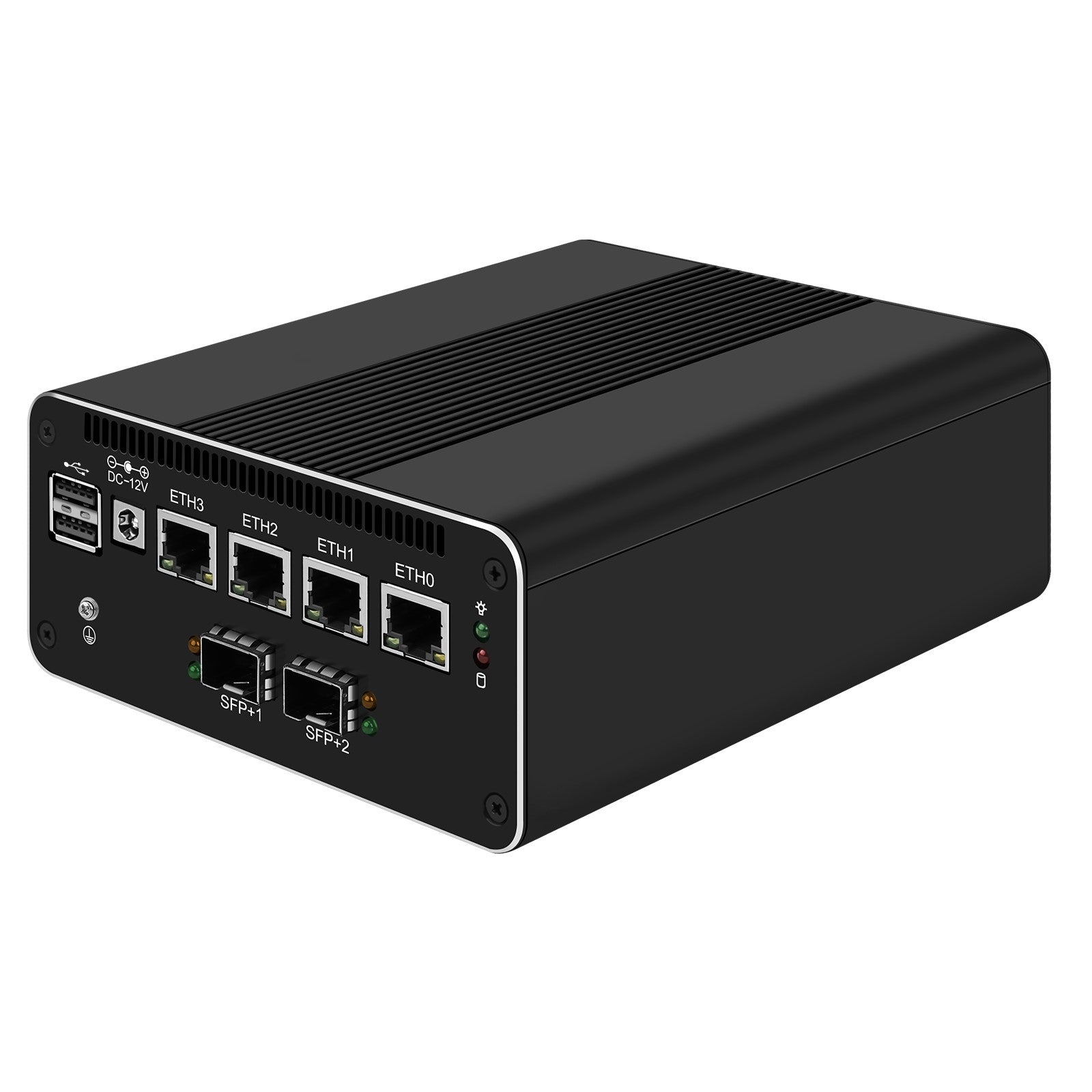

  • 【2xSFP+ 10GbE + 4x2.5GbE】This Firewall Router equipped with 2xIntel 82599ES 10gbe network card and 4*Intel i226-V network card speed maximum up to 2.5GbE(need other device like router, cables etc. also support 2.5Gbe/10gbe)which can bring you more faster and professional network usage(some system not release drivers yet) suggest to install version of below systems: pf-sense plus 23.0X or CE 2.7.X, OPNsense 22.1, OpenWrt, ROS7, ESXI 8 , Proxmox, CentOS etc).
  • 【4G LTE Function supported】This model also support 4G LTE function(mini PCIE slot for 4G modem) and SIM card slot which you can use it as a IOT devices for your server.
  • 【Quality With Warranty】If you have any questions or requirements(like OS installation/ drives/bios updates etc.) on MOGINSOK Firewall mini pc MGNASN, PLEASE feel free to contact us. We offered 12 Months warranty for it and WE'LL REPLY YOUR Questions within 12 hours(during Workdays)



  • Preinstall Pfsense 2.7.X OS in ENGLISH, if you need other OS, please kindly leave a message
