MOGINSOK Pfsense Router 6x2.5GbE with Inte 12th Core I3 1220P I5 I7 10C/12T 6xI226V 3xDisplay Micro Firewall Appliance NO RAM NO SSD USB3.2 Fanless Mini PC Support AES-NI Pfsense ESXI/OPNsense/Openwrt

• 【Powerful Firewall Appliance Router】MOGINSOK Pfsense Firewall Mini PC-MGSR612, equipped with a powerful 12th Gen Core i5 1235U 10 cores, 12 threads up to 4.40 GHz(Core i3 1215U 6 cores, 8 threads up to 4.40 GHz/ Core i7 1265U 10 cores, 12 threads up to 4.40 GHz) TDP only 15W, supported AES-NI With HDMI 1.4+DP 1.4A（support 8K)+TYPE C Support Dual 3x4K@60Hz Display together, a fanless & silent professional firewall router pc with multi-functions like AES-NI, ESXI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc. bring your home & your business a secured and encrypted network environment
• 【2xDDR4 2xM.2 Slots】Pfsense Firewall Appliance MGSR612 With Dual DDR4 RAM slot support for up to 2x32GB SO-Dimm(260pin) DDR4 Ram Maximum 3200Mhz and 1x M.2 NVMe/PCIe 3.0x4 2280 SSD slot +1 M.2 2230 PCIE 3.0 WIFI slot(with included board adapter it can install another M.2 SSD)+2xSATA 3.0(only one mount space), bring you extraordinary speed experience, this device is perfect for your firewall、VM、VPN Router、home Server needs.
• 【6x2.5GbE UDE Network Car】This 2.5GbE Firewall Router equipped with 6*Intel i226 network card speed maximum up to 2.5GbE(need other device like router, cables etc. also support 2.5Gbe)which can bring you more faster and professional network usage(some system not release drivers yet) suggest to install version of below systems: pfSense plus 23.01/22.05 or CE 2.7.0(pfsense 2.6.0 not supported by I226), OPNsense 22.1, OpenWrt, ROS7, ESXI 8 , Proxmox, CentOS etc).
• 【Professional OS installed】MGSR612 Pre-installed pfsense plus 23.01 OS and you can install OPNsense, OpenWrt, Unbutun, windows 10 or 11 and other popular open-source software solutions on this Firewall Router. Which you can use it as an Firewall, Netgate, Softrouting, NAS, Firewall, ESXI, PVEvirtualization platform(support VT-X,VT-D).
• 【Quality With Warranty】We offered 3 Years warranty for our products(aftersales support for life-time). If you have any questions or requirements(like OS installation/ drives/bios updates etc.) on MOGINSOK Firewall Appliance mini pc , please feel free to contact us. WE'LL REPLY YOUR messages within 12 hours(during Workdays).

Product Highlight

-12Th Gen Intel Core CPU with Inte 12th Core I7 1265U 10C/12T 6xI226V 3xDisplay

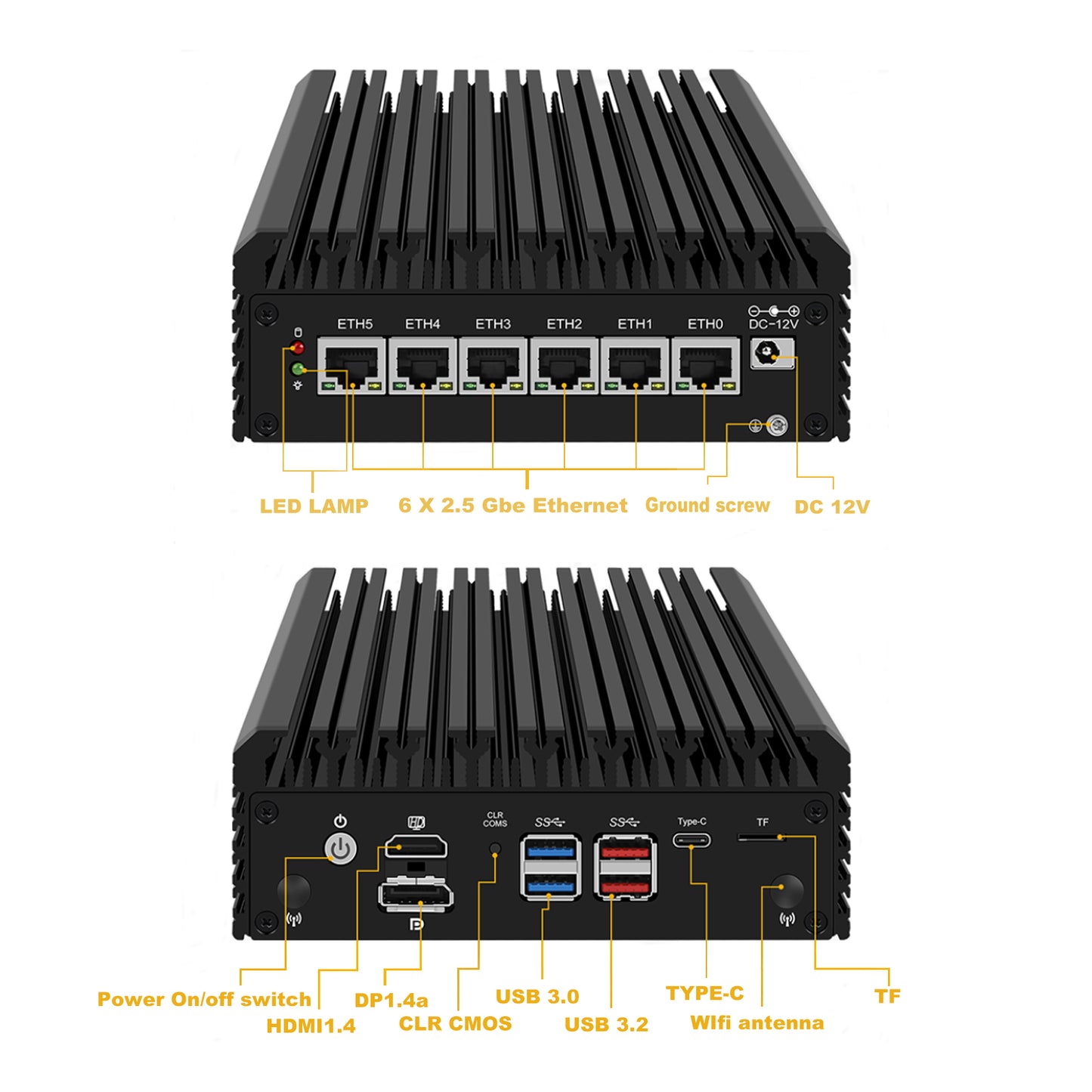

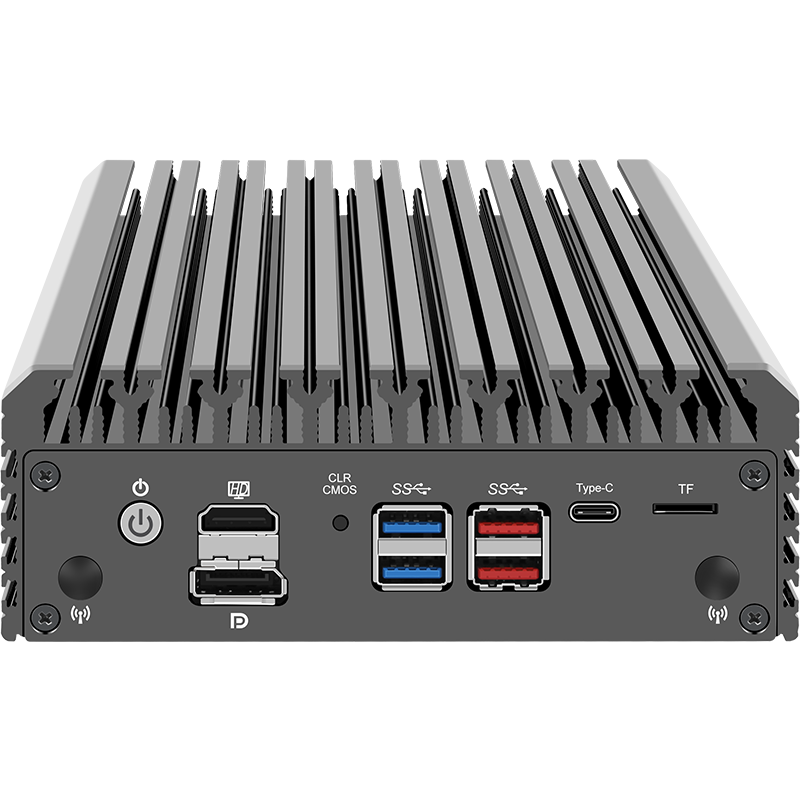

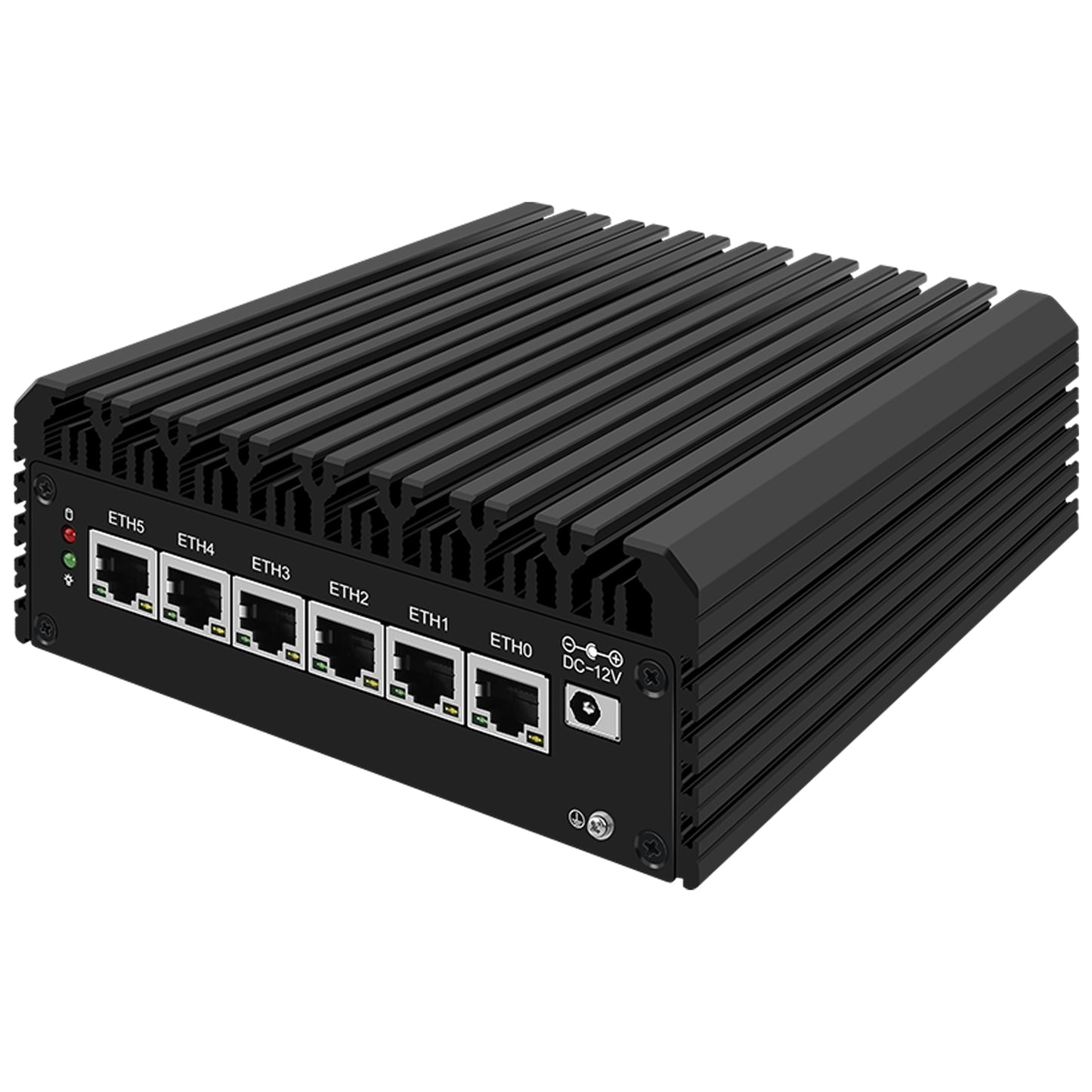

-6xIntel i226-V 2.5G UDE filter pure RJ45 LANs, 2xUSB3.2 Gen2(10Gb/s), 2xUSB2.0, 1xUSB Type-C, 1xTF card slot.
-2xDDR4SODIMM non-ecc ram slot, support 3200MHz.
-Support triple storage: 1xM.2 2280 NVMe/PCIE3.0x4 SSD+1xM.2 2280 NVMe/PCIE3.0x1 SSD+1x2.5''SATA3.0 SSD/HDD.
-1xM.2 2232 slot, support WiFi connection, also support transfer to 1xM.2 NVMe/PCIe3.0x1 2280 SSD with PCB adapter board.
-TF card slot support storage and system disk boot, 2xUSB 3.0+2xUSB 3.2
-Support three display: 1xHDMI1.4, 1xDP1.4A, 1xType-C, 3x4K@60Hz UHD video display.
-Support wide voltage 12-19V input or ATX 4pins power supply.
-Support TPM2.0, AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Innovative fanless design: Heavy aluminum solid-built heat-sink with dual copper tube and high tooth-fins, excellent cooling performance, Exquisite production craft on outside design.
-Noiselessness, dustproof and durability fit for industrial grade field, work as long as 24 hours.

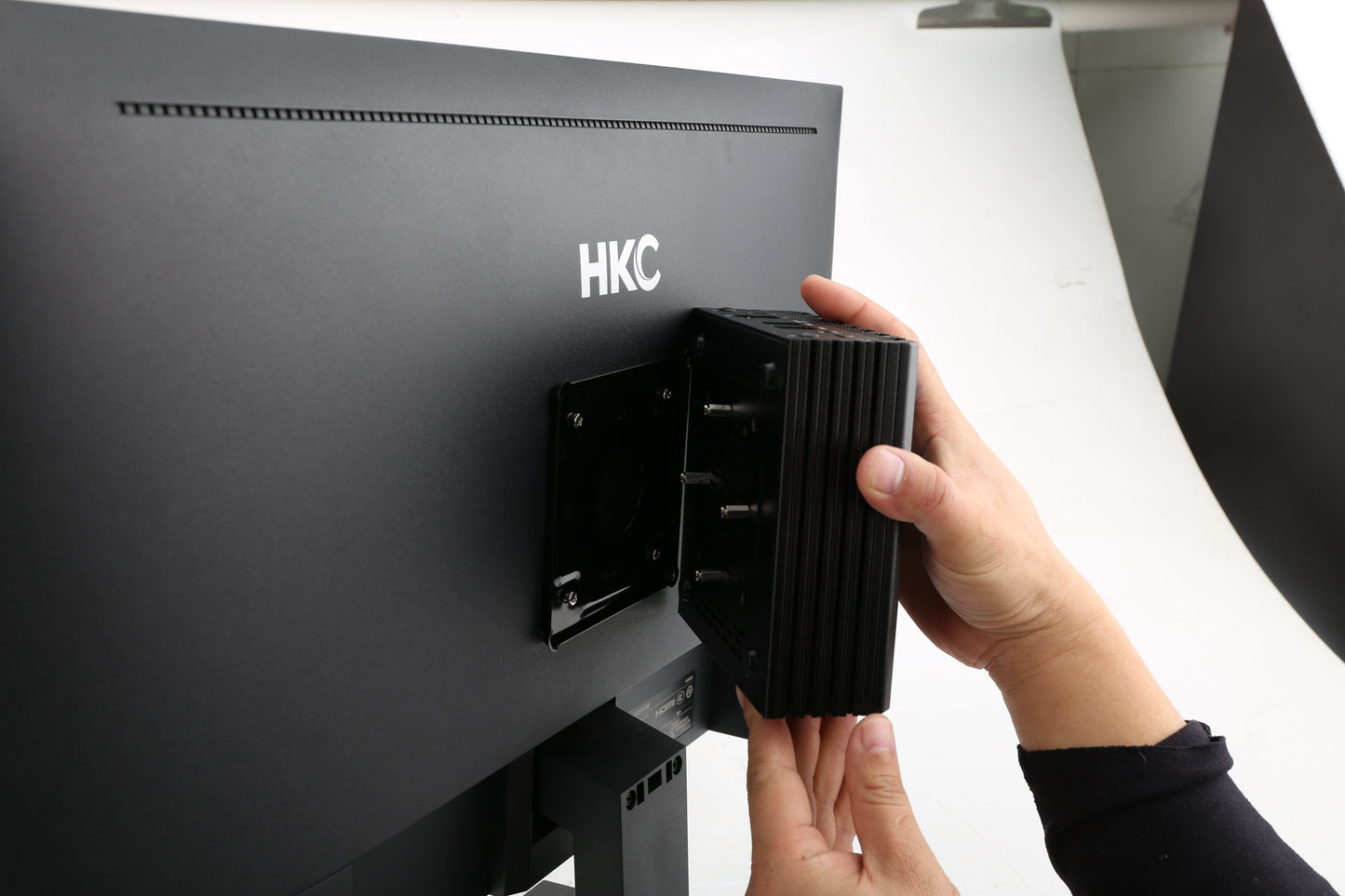

-Low consumption TDP 15W and can be mounted back of monitor by VESA bracket(optional).

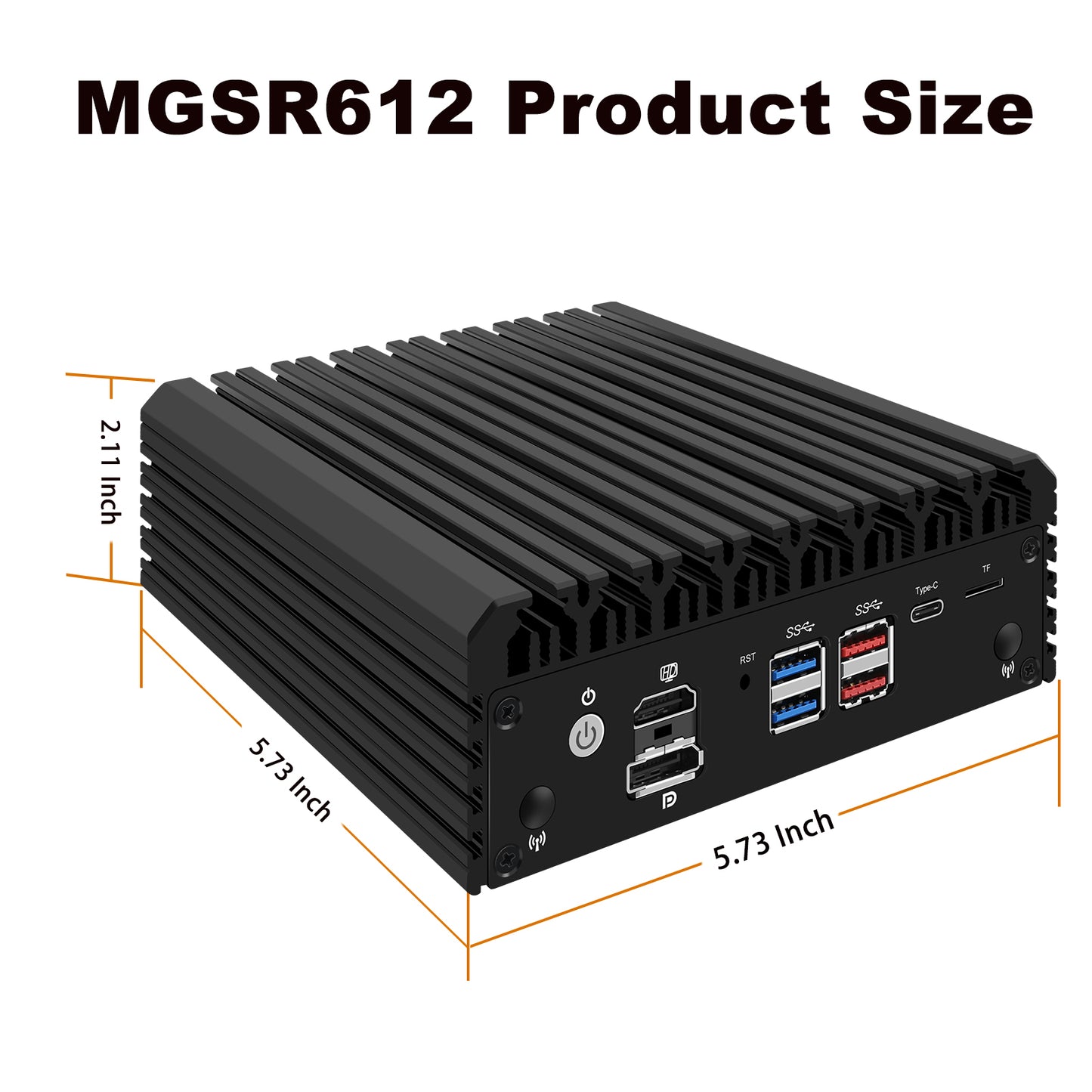

-Size 145.6mm*145.4mm*53.6mm, support 1x8010 Fan and VESA MOUNT (not included, if you need it please kindly send us message)


Package List

1xMini PC
1x12V 8A Power Adapter
1xUS Power Cord
1xM.2 2232 to 2280 PCB adapter board
1xSATA Cable
1xScrews Bag
